Automatic Paper Dish Making Machine

Name: Automatic Paper Dish Making Machine
Brand: Mingyuan
Price: 1 USD

Quality Automatic Paper Dish Making Machine wholesale

Brand Name : Mingyuan

Model Number : ZDJ-400K

Certification : CE, SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150 sets each Yeah

Delivery Time : 30 days

Packaging Details : Export standard Wooden Case

Plate Size : 7 CM to 30 CM

Raw Material : Cardboard Paper, PE coated Paper, Uncoated Paper or Others

Net Weight : 500 KGS

Power Source : 220V or 380 V or Other require

Color : Yellow Door Black Frame

Power : 3 KW

Contact Now

Automatic Paper Dish Making Machine

Quick Details

Paper Plate Size	3-11 inch (mould exchangable), Bigger or specially available
Productivity	70-100 Pcs/min
Warranty	1 years
Usage	Round Plate or other shape plate
after-sales service	Engineers available to service machinery overseas

Description

ZDJ-400K High Speed Paper Plate Forming Machine is developed and designed as the requirement of market. It is Pneumatic Type automatic paper plate forming machine with owned unique intellectual property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc.

This machine have two working station, two molds installed in the machine, you can produce two sizes paper plates in the same time or let the two molds the same to get double speed. Air compressor is demanded in this machine to offer the air pressure.

Specification

Model	ZDJ-400K
Paper Plate Size	3-11 inch (mold exchangeable)
Raw Material	180-500g/m2 Paper/paperboard, aluminum foil coated paper, one side PE coated paper or other
Rated Productivity	70-100 piece/minute (total two working stations)
Power Source	220V 50Hz or other required
Working Air Source	Air Pressure: 0.8mpa, Air Out-put : 1.5 m³/minute(Need to buy An air compressor)
Total Power	3Kw
Dimension	1480×1150×2050 mm
Weight	500kg

Advantage

Mold Installment	The machine is with two free molds installed
Air Cylinder	Our machine use much more stroner air cylinder than others, which makes the plate pressing more exactly(we use Taiwan cylinder)
Paper Clamping Manipulator	The paper plate machine is using the automatic paper clamping manipulater system, which save a lot of time and labor costs
Free Spare Parts	one year guarantee,will give spare parts with machine while packing (enough for 2 years using) with one year,all parts given for free, after that we need charges and delivery cost

Loading Machine

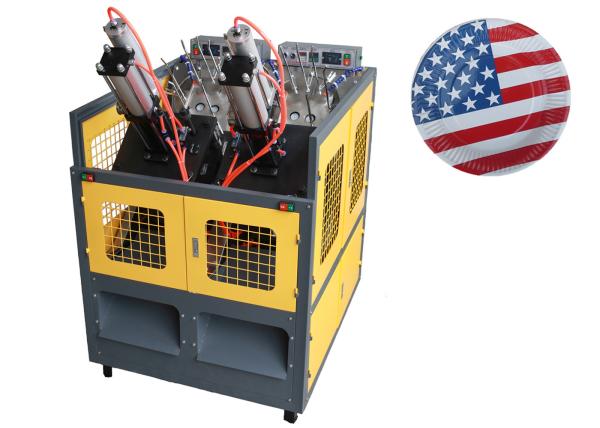

Automatic Paper Dish Making Machine

Product Tags:

paper plate forming machine

paper plate manufacturing machine

Automatic Paper Dish Making Machine Images
